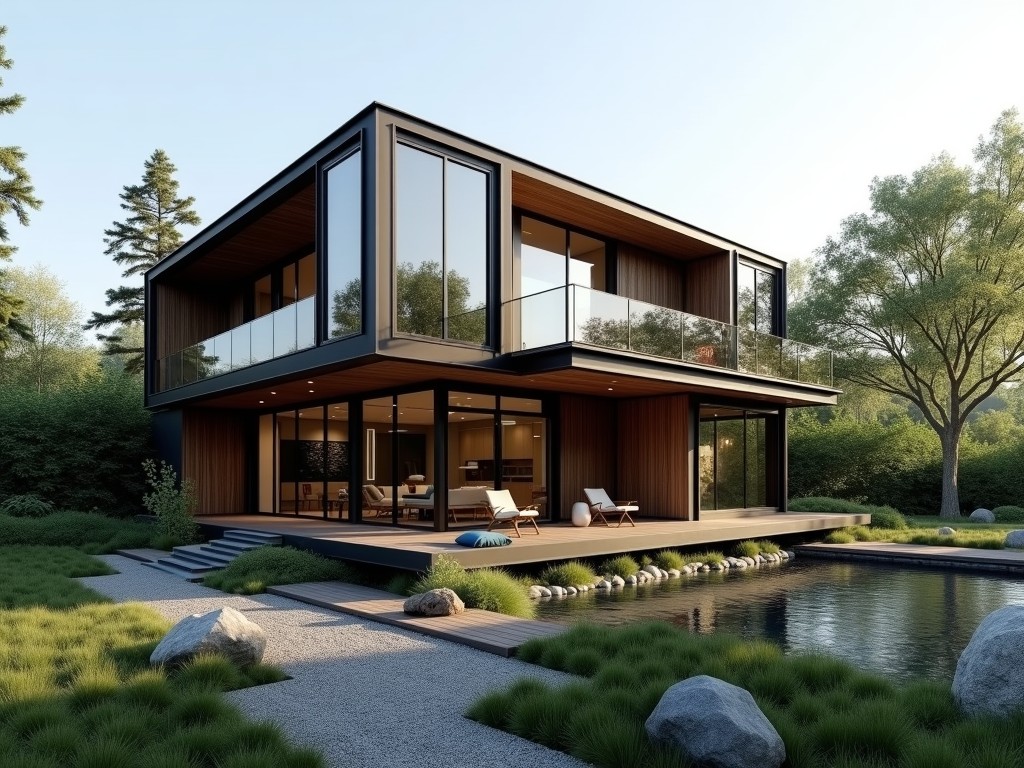

Anti-Corrosion Steel Structure Villa House

The structural frame of a villa house must resist atmospheric moisture, chloride ingress, and temperature cycling over decades of service. Selecting steel grades with appropriate alloy content and applying proven coating systems directly influences long‑term maintenance costs.

Corrosion Protection Mechanisms

Carbon steel corrodes when anodic sites oxidize and cathodic sites reduce oxygen or water in the presence of an electrolyte. Protective strategies either isolate the steel from the electrolyte or shift the electrochemical potential to a passive region.

Barrier protection relies on continuous, defect‑free coatings that block water and ion diffusion. Sacrificial protection uses a more active metal (e.g., zinc) that corrodes preferentially, preserving the underlying steel.

Inhibitor‑based systems add chemical species that adsorb on the steel surface and reduce the anodic reaction rate. Combining barrier and sacrificial layers yields synergistic performance, especially in marine or industrial atmospheres.

Material Selection and Coating Systems

Structural members are typically fabricated from hot‑rolled ASTM A992 or equivalent high‑strength low‑alloy steel with a minimum yield strength of 345 MPa. The chemical composition includes carbon ≤0.20 %, manganese 0.80‑1.50 %, and trace copper for improved atmospheric resistance.

A common coating sequence begins with a zinc‑rich primer (≈70 % Zn by weight) applied to a blast‑cleaned Sa 2½ surface, providing cathodic protection. This is followed by an epoxy intermediate layer (≈120 µm dry film thickness) that offers excellent adhesion and chemical resistance.

The final topcoat is a polyurethane aliphatic finish (≈80 µm DFT) selected for UV stability and color retention. Total system thickness typically ranges from 300 µm to 450 µm depending on environmental classification (ISO 12944‑5 C3‑C5).

Design and Fabrication Considerations

Joint design must accommodate coating application and inspection. Bolted connections use oversized holes to allow primer penetration, while welded joints require post‑weld cleaning and spot‑recoating of the heat‑affected zone.

Members are prefabricated in controlled shop environments to achieve consistent surface preparation (Sa 2½) and coating thickness. Field welding is limited to non‑critical connections, with touch‑up performed according to the manufacturer’s repair procedure.

Deflection limits for villa floors and roofs are governed by serviceability criteria (L/360 for live load, L/240 for total load). Camber is introduced in long beams to counteract expected creep and settlement.

Quality Assurance and Testing

Incoming steel is inspected for mill test reports, dimensional tolerances, and surface cleanliness. Surface profile is measured using replica tape to confirm the required roughness (typically 30‑50 µm peak‑to‑valley) before coating.

Wet film thickness is monitored during application with a notch gauge; dry film thickness is verified post‑cure using a magnetic induction gauge. Adhesion is assessed by cross‑cut tape test (ASTM D3359) targeting a rating of 5B.

Holiday detection identifies coating discontinuities at 67.5 V/mm for zinc‑rich primers. Salt spray (ASTM B117) and cyclic corrosion testing (ISO 12944‑9) are performed on representative samples to validate predicted service life.

Typical Applications

• Residential villas in coastal zones where chloride exposure exceeds 300 g/m²/year.
• Low‑rise housing developments near industrial emissions requiring SO₂ resistance.
• Modular housing units fabricated off‑site and transported to locations with limited on‑site welding capabilities.

Technical Specification Table

Frequently Asked Questions

Contact for Technical Inquiry

For detailed engineering support, material data sheets, or to arrange a sample panel, please reach out to our technical team.
