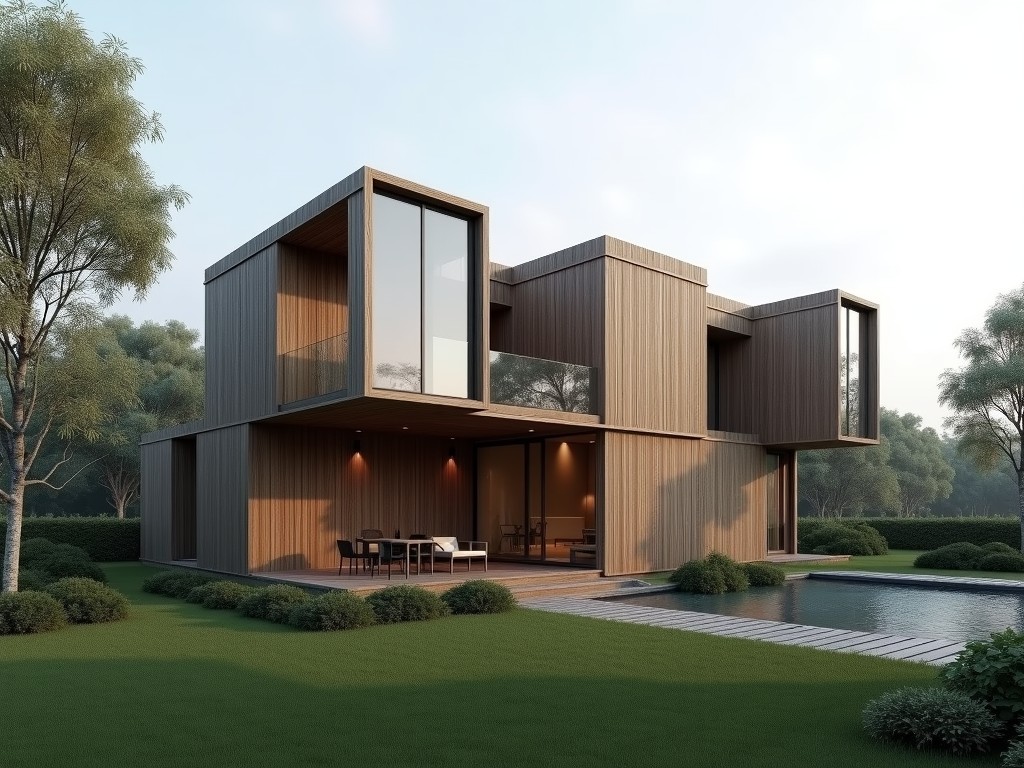

China Modern Design Light Steel Villa

Light steel villas are prefabricated building systems constructed from cold‑formed steel frames that are assembled on‑site. They combine the speed of modular construction with the durability of steel, allowing rapid deployment for various housing needs.

Design Flexibility

Modern design approaches use standardized panel grids, typically 600 mm on center, to create flexible floor plans. Architects can vary module combinations to achieve contemporary aesthetics such as flat roofs, large glazing areas, and cantilevered volumes. The steel framing accommodates both load‑bearing walls and non‑structural cladding without additional reinforcement.

Structural Performance

Structural capacity is determined by the thickness and grade of the steel members. Typical wall studs are 0.9 mm to 1.2 mm thick galvanized steel, providing axial load resistance up to 15 kN per stud. The system meets wind load requirements of 50 m/s and seismic performance up to intensity 8 on the Chinese seismic scale.

Thermal and Acoustic Properties

Thermal performance is controlled by inserting insulation between the steel studs. Common options include rock wool, EPS, or PU foam, yielding overall wall U‑values between 0.30 and 0.45 W/(m²·K) depending on thickness.

Durability and Corrosion Protection

Corrosion protection is achieved through hot‑dip galvanizing of all steel components. A zinc coating of 120 µm minimum provides a service life exceeding 50 years in rural environments and 30 years in coastal zones when maintained.

Typical Applications

Applications benefit from the system’s lightweight nature and rapid erection. Projects in remote locations, disaster‑relief camps, and temporary industrial facilities frequently choose light steel villas because foundations can be minimal and erection time reduced to weeks.

• Remote site worker housing
• Emergency disaster relief shelters
• Tourist resort cabins
• Agricultural storage and livestock shelters

Customization Options

Customization begins with the layout module selection. Clients can specify interior partitions, window placements, and door types to match functional requirements. Exterior finishes range from pre‑painted steel panels to fiber cement boards, allowing various architectural styles.

Manufacturing and Quality Control

Manufacturing occurs in a controlled factory environment where CNC‑cut steel profiles are punched, bent, and welded. Quality control includes dimensional inspection of each member against ±2 mm tolerances and visual inspection of galvan coating continuity. Finished panels are bundled, labeled, and protected with corrosion‑inhibiting wraps before shipment.

Technical Specifications

Frequently Asked Questions

Can dimensions be customized?

Yes, module grid and overall footprint can be adjusted per project requirements; typical module width is 600 mm but multiples of 300 mm are available.

What information is required for a quotation?

Project footprint, number of modules, desired interior layout, insulation type, exterior finish, and any special openings (doors, windows) are needed to prepare a detailed quote.

How is quality inspected before shipment?

Each steel member undergoes dimensional checks (±2 mm tolerance), coating continuity test, and visual inspection; completed panels are verified for correct labeling and protective wrapping.

What packaging methods are used for export?

Panels are stacked on pallets, wrapped in UV‑stable polyethylene film, and secured with steel straps; corner protectors and moisture‑absorbing packs are added for long‑distance transport.

Contact our technical team for a detailed quotation and project consultation.
