Light Steel Flat Pack Villa – Factory Price Overview

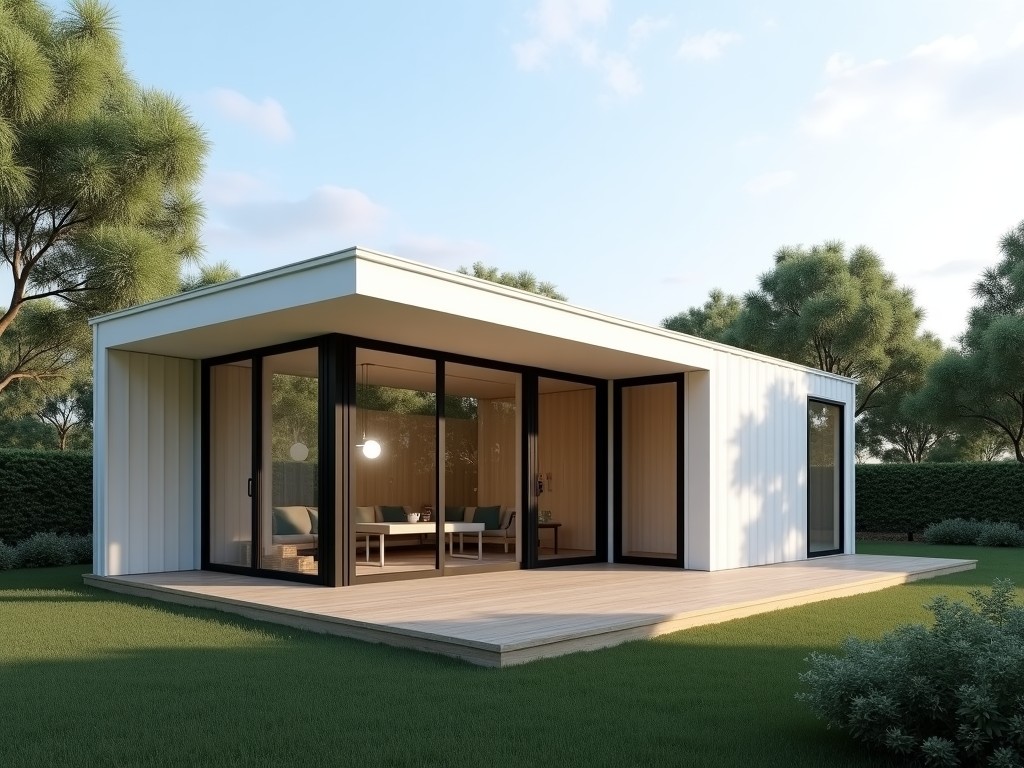

A light steel flat pack villa is a prefabricated building system where structural frames, wall panels, and roof components are manufactured in a factory, packed flat, and shipped to the site for rapid assembly. The system relies on cold‑formed steel members that are lightweight yet capable of supporting typical residential loads. Factory pricing reflects the cost of material, fabrication, and standard packaging before any optional finishes or site work.
Structural System and Material Composition
The primary framing uses cold‑formed steel sections made from hot‑dip galvanized coil. Common steel grades are Q235 (yield strength ≈235 MPa) or Q345 (≈345 MPa) depending on span and load requirements. Typical thickness ranges from 0.8 mm for non‑load‑bearing studs to 2.0 mm for main columns and beams. The zinc coating is usually Z275 (275 g/m² total on both sides) to provide corrosion resistance in most climates.
Design Flexibility and Modular Dimensions
Modules are based on a standard panel width of 600 mm and a length that can be varied in 300 mm increments up to 6 m, allowing architects to create layouts ranging from a single‑room studio to multi‑bedroom villas. Wall panel height is typically 2.8 m, but can be increased to 3.2 m with additional studs. Openings for doors and windows are prefabricated as cut‑outs in the panels, reducing on‑site cutting.
Typical Technical Specifications
| Parameter | Typical Value | Notes / Customization |
|---|---|---|
| Steel grade | Q235 or Q345 | Higher grade available for longer spans |
| Section thickness | 0.8 mm – 2.0 mm | Selected per load case |
| Zinc coating | Z275 (275 g/m²) | Z450 optional for aggressive environments |
| Panel width | 600 mm | Can be combined to form wider walls |
| Panel length | 600 mm – 6000 mm (in 300 mm steps) | Custom lengths on request |
| Wall height | 2.8 m (standard) | Up to 3.2 m with additional studs |
| Roof live load capacity | 1.5 kN/m² (typical) | Can be increased with deeper purlins |
Applications in Industrial and Remote Projects
Because the flat pack system reduces on‑site welding and cutting, it is well suited for projects where skilled labor is limited or where site access is restricted, such as mining camps, remote research stations, or disaster‑relief housing. The lightweight steel frame allows foundations to be simplified—often a concrete slab or pier system—reducing excavation and curing time. Additionally, the modular nature enables rapid expansion; additional units can be bolted to existing structures without major rework.
Quality Assurance and Inspection Process
In the factory, each steel member is checked for dimensional tolerance (±1 mm on cut length, ±0.5 mm on hole position) using laser gauges before punching or drilling. After forming, the zinc coating thickness is measured with a magnetic induction gauge to confirm compliance with the specified Z275 or Z450 grade. All bolt‑hole patterns are verified against CAD data, and a random sample of assembled panels undergoes a load test to validate connection strength.
Packaging, Transportation, and On‑Site Assembly
Finished panels are stacked flat, protected by edge guards, and secured with steel straps or plastic banding. A standard 40‑foot container can hold approximately 25 m² of wall panels, allowing efficient sea or land transport. On site, the panels are lifted with a small crane or forklift, aligned according to the erection drawing, and connected using pre‑drilled bolts and lock nuts; no welding is required, and a crew of four can typically erect a 50 m² villa in two days.
Frequently Asked Questions
- Can the dimensions be customized?
- What information is needed for a quotation?
- Which steel grades and coatings are available?
- How is quality inspected before shipment?
- What packaging options are offered for export?
- What is the typical production lead time?
- Are samples available for evaluation?
Request a Quotation
To obtain a factory price for a light steel flat pack villa tailored to your project, please provide the required floor area, desired wall height, and any specific load or coating specifications. Our technical team will review the details and return a detailed cost breakdown and lead time.
