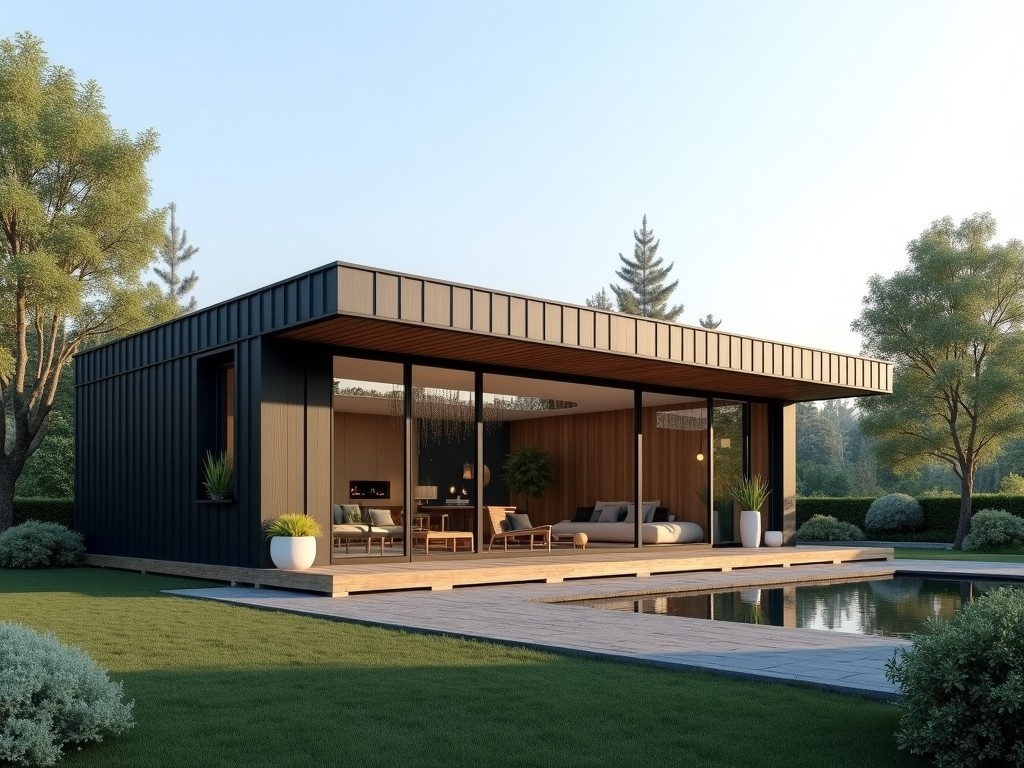

Modern Design Light Steel Villa China Manufacturers
- Cammi House
- 2026-10-13
Light steel villas rely on cold‑formed galvanized steel profiles that form walls, floors, and roof trusses. The steel is typically coated with zinc‑aluminum‑magnesium alloy to achieve corrosion
Modern Design Light Steel Villa Solutions from China Manufacturers
System Overview
Light steel villas rely on cold‑formed galvanized steel profiles that form walls, floors, and roof trusses. The steel is typically coated with zinc‑aluminum‑magnesium alloy to achieve corrosion resistance exceeding 600 hours in salt‑spray testing. Insulated sandwich panels or gypsum board finish the envelope, providing thermal performance comparable to traditional concrete construction.
Structural Framing Characteristics
Member thicknesses range from 0.8 mm to 2.5 mm depending on load span and local code requirements. Sections are C‑shaped or Z‑shaped, offering high strength‑to‑weight ratios; a typical 150 mm deep C‑section can resist axial loads of up to 25 kN per meter. Connections use self‑drilling screws or bolted plates, allowing rapid assembly without welding on site.
Material Selection and Protection
Base steel grades include Q235B, Q345B, and higher strength Q550, each with specified yield tolerances. Hot‑dip galvanizing follows ISO 1461, delivering zinc coating masses of 120‑275 g/m². For coastal environments, manufacturers may apply a polymer‑based topcoat to extend service life beyond 30 years.
Design Flexibility and Customization
Because steel members are fabricated to CNC‑cut lengths, floor plans can be altered without changing the primary grid. Common module sizes are 600 mm or 900 mm, enabling open‑plan layouts, mezzanine floors, and varied roof pitches. Exterior finishes range from pre‑painted steel sheets to fiber‑cement cladding, each with defined fire‑rating classifications.
Manufacturing Process Flow
Production begins with coil slitting to prescribed widths, followed by roll‑forming into C or Z profiles. Panels are cut, punched for service openings, and then coated in a continuous galvanizing line. Final assembly involves bundling members into flat‑pack kits, labeling each piece with bar‑code references for on‑site erection.
Quality Assurance Measures
Dimensional checks are performed on every 10th member using laser scanners, with tolerances of ±0.5 mm for length and ±0.2 mm for flange width. Coating thickness is verified via magnetic induction gauges, and mechanical tests on sample coupons confirm tensile strength within ±5 % of specification. All records are retained for traceability per ISO 9001 guidelines.
Typical Applications
Light steel villas are suited for remote housing, disaster‑relief shelters, and low‑rise residential clusters where foundation work is limited. The reduced dead load—often less than 0.6 kN/m²—allows use on shallow spread footings or screw piles, minimizing excavation and environmental impact.
Technical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Steel Grade | Q345B (yield ≥ 345 MPa) | Higher grades available on request |
| Section Depth | 100 mm – 200 mm | Custom depths per span |
| Coating Mass | 180 g/m² (Zn‑Al‑Mg) | Equivalent to 20 µm zinc |
| Thermal Conductivity (Panel) | 0.04 W/(m·K) | With EPS core |
| Fire Rating (Exterior) | ASTM E84 Class B | Achievable with gypsum finish |
Frequently Asked Questions
Can dimensions be customized? Yes, member lengths and panel widths are cut to project‑specific drawings; standard modular increments are 600 mm.
What information is required before quotation? Provide floor plan, desired clear height, local snow and wind loads, and any finish preferences.
How is quality inspected? Incoming coil is checked for grade and coating; each fabricated batch undergoes dimensional and mechanical sampling before shipment.
What packaging methods are available? Members are bundled with steel straps and placed in waterproof pallets; panels are stacked flat with corner protectors.
What is the typical production lead time? For a 200 m² villa, lead time ranges from 25 to 35 working days after drawing approval, depending on coating selection.
