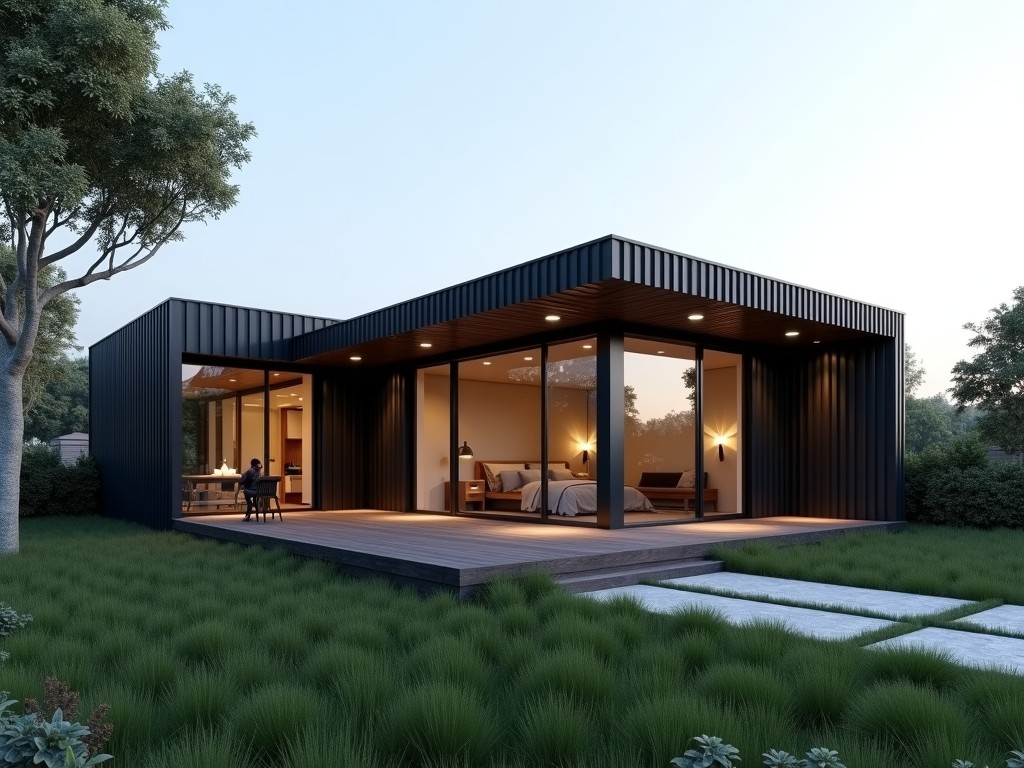

Modern Light Steel Structure Villa Manufacturers
Light steel structure villas utilize cold‑formed steel members such as C‑stud, U‑track and Z‑purlin that are roll‑formed to precise dimensions and then assembled on‑site. The system provides a high strength‑to‑weight ratio, enabling spans of up to 6 m without intermediate supports while keeping the overall dead load below 40 kg/m² for typical residential configurations.
Structural System Overview
Primary framing consists of vertical studs spaced at 400 mm or 600 mm centers, connected by horizontal tracks at floor and ceiling levels. Diagonal bracing or shear walls made from the same steel profile provide lateral stability against wind and seismic forces. Connections are typically achieved with self‑drilling screws or pre‑punched holes for bolts, allowing rapid erection without welding in most cases.
Material Specifications
| Property | Typical Value | Notes |
|---|---|---|
| Steel Grade | S350GD+Z275 | Hot‑dip galvanized, yield strength 350 MPa |
| Section Thickness | 0.9 mm – 2.0 mm | Depends on load span and design code |
| Coating Mass | 275 g/m² (both sides) | Provides corrosion resistance for C4 environments |
| Modulus of Elasticity | 200 GPa | Standard for structural steel |
Manufacturing Process
Coils of galvanized steel are fed into roll‑forming lines that shape the studs, tracks and accessories to the required profile. Inline punching creates fastener holes and service cut‑outs according to the project BIM model. After forming, lengths are cut to size, bundled and subjected to visual inspection for dimensional tolerance (±0.5 mm) and coating continuity. No heat treatment is applied; mechanical properties are retained from the base material.
Design Flexibility & Customization
The modular nature of light steel framing allows architects to vary room dimensions in increments of 100 mm while maintaining structural integrity. Load‑bearing walls can support floor loads up to 2.5 kN/m² and roof loads up to 1.5 kN/m². Service channels for electrical, plumbing and HVAC are integrated by pre‑punched openings or by adding secondary studs, reducing on‑site labor.
Applications & Suitability
These villas are particularly advantageous in remote or disaster‑prone regions where rapid deployment and low foundation loads are critical. The steel system resists termite damage, rot and fire spread when combined with appropriate cladding, and its ductile behavior performs well under seismic actions compared to conventional masonry. Additionally, the lightweight nature reduces transportation costs, enabling delivery in standard 20‑ft or 40‑ft containers.
Quality Control & Testing
Each production batch undergoes coordinate measuring machine verification of critical dimensions, tensile testing of coupon samples to confirm yield strength, and salt‑spray exposure for corrosion resistance per ISO 9227. Visual inspection of coating adhesion and fastener hole quality is performed before packaging. Documentation of test results is available upon request.
Packaging & Logistics
Finished components are stacked on pallets, protected with corner guards and wrapped in UV‑stable polyethylene film. Pallets are designed for forklift handling and fit within standard container dimensions, minimizing shifting during transit. A detailed packing list, including part numbers and quantities, accompanies each shipment to facilitate site inventory.
Frequently Asked Questions
- Can dimensions be customized? Yes, stud length, spacing and opening sizes are adjusted per project specifications.
- What information is required before quotation? Architectural drawings, load requirements, cladding type and destination country for corrosion grading.
- What materials are available? S350GD+Z275 is standard; higher zinc coatings or stainless steel grades can be supplied on request.
- How is quality inspected? Dimensional checks, mechanical testing and coating assessments as described in the quality control section.
- What packaging methods are available? Standard palletized film‑wrapped packaging; custom crating for oversized parts.
- How are export shipments protected? Corner guards, moisture‑barrier film and secure strapping to prevent movement.
- What is the typical production lead time? 4‑6 weeks after receipt of approved drawings, depending on order volume.
