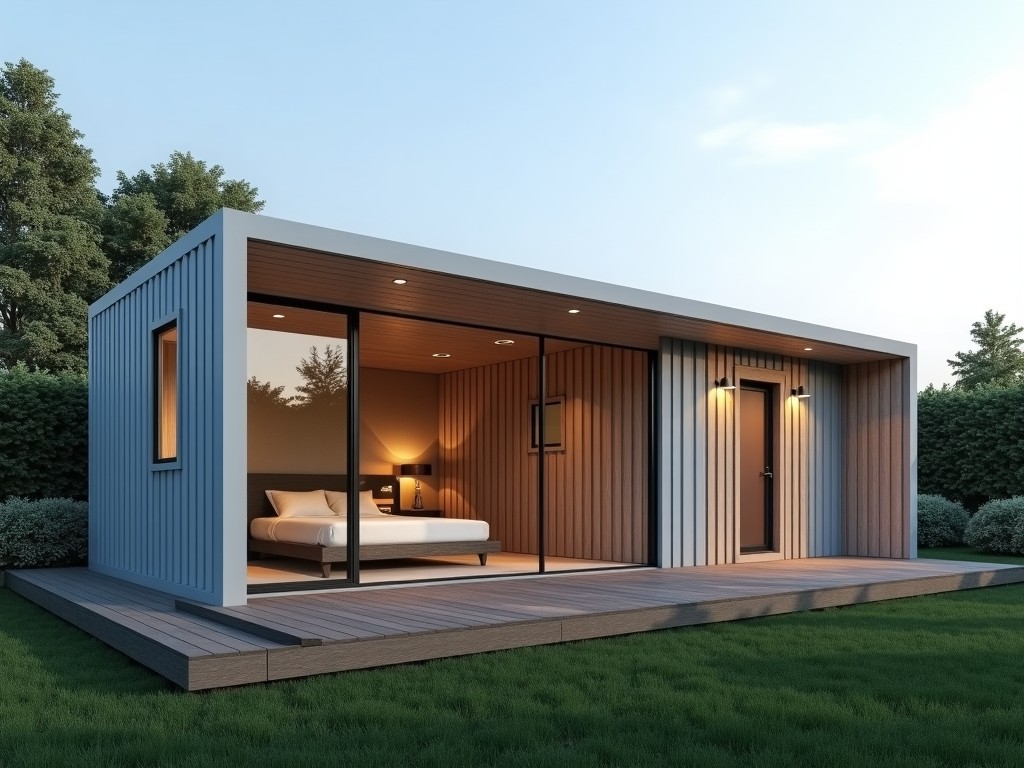

Modular Resort Light Steel Villa Supplier

A modular resort light steel villa is a prefabricated building system designed for rapid deployment in hospitality environments such as eco‑lodges, glamping sites, and boutique resorts.

The structure relies on cold‑formed steel frames that are engineered to meet wind and snow load requirements while keeping the overall weight low enough for transport on standard flatbed trailers.

The primary load‑bearing framework consists of C‑section studs and tracks fabricated from galvanized steel with a minimum yield strength of 340 MPa.

Connections are made using self‑drilling screws and bolted plates, allowing the frame to be assembled on‑site without welding, which reduces installation time and eliminates the need for skilled welders.

Floor and roof panels are typically sandwiched panels with EPS or PU core, providing thermal resistance (R‑value) of approximately 3.5 m²·K/W for a 100 mm thickness.

• Galvanized steel (Z275 coating) for structural members – corrosion resistance suitable for humid coastal climates.
• Aluminum‑zinc alloy coated steel (AZ150) for enhanced durability in marine environments.
• Exterior cladding choices: fiber‑cement boards, metal siding with PVDF finish, or treated timber panels.
• Interior finishes: gypsum board, PVC wall panels, or bamboo‑based composite panels.

All material selections are made based on project‑specific criteria such as design life, local building codes, and maintenance expectations.

Because each resort site has unique topography, orientation, and guest capacity, the villa system is configured through a parametric design process.

Key variables that can be adjusted without redesigning the core frame include:

• Module length (typically 3 m to 6 m increments).
• Number of bays (single‑story up to three‑story configurations).
• Roof pitch (flat, 2:12, 4:12, or 6:12).
• Facade module size for window and door openings.

The design team supplies 3D BIM models and shop drawings that reflect the chosen configuration, enabling accurate fabrication and logistics planning.

Values shown are typical; actual specifications are customized according to project requirements and local codes.

Modular light steel villas are selected for resort projects because they minimize site disturbance, shorten construction schedules, and allow for phased expansion as occupancy grows.

Typical use cases include:

• Eco‑lodge cabins situated on sensitive terrain where minimal foundation work is required.
• Glamping pods that need rapid installation and can be relocated if needed.
• Boutique hotel suites with customizable interior layouts to accommodate different room types.
• Staff accommodation blocks that can be scaled up during peak seasons.

The system’s lightweight nature reduces the need for deep foundations, which is advantageous in areas with poor soil conditions or strict environmental regulations.

Fabrication occurs in a controlled plant environment where dimensional tolerances are maintained within ±2 mm for critical members.

Each frame undergoes a three‑stage inspection: incoming material verification, in‑process weld‑free connection check, and final assembly fit‑test.

Surface treatment thickness is measured with a magnetic gauge to ensure coating weight meets the specified Z275 or AZ150 standard.

Panels are subjected to a water spray test to validate joint sealing before packaging.

Finished modules are wrapped in UV‑stabilized polyethylene film and placed on steel pallets designed for forklift handling.

Each pallet is secured with polyester strapping and corner protectors to prevent deformation during transit.

Standard containerization allows a 20‑foot container to hold up to three 3 m × 6 m modules, reducing per‑unit shipping cost.

Can dimensions be customized? Yes, module length, width, and height can be adjusted in increments of 300 mm to suit site layout and transportation limits.

What information is required before quotation? Preliminary architectural drawings, site plan, anticipated loads (wind, snow), and any specific cladding or finish preferences.

What materials are available? Structural steel grades (S350GD, S550GD), various coating options, and a range of interior and exterior cladding systems.

How is quality inspected? Through dimensional checks, coating thickness measurement, and functional tests on joints and panels as described in the quality control section.

What packaging methods are available? Standard palletized wrap, custom crating for oversized components, and container‑ready frames.

How are export shipments protected? Modules are sealed with moisture‑resistant film, secured with steel bands, and loaded with shock‑absorbing dunnage inside the container.

What is the typical production lead time? Generally 4–6 weeks after final design approval, depending on order complexity and plant capacity.

How are samples arranged? Small‑scale frame sections or panel samples can be shipped via express courier upon request; associated costs are credited against a subsequent order.

For technical inquiries, quotation requests, or to discuss a specific resort project, please contact our engineering team.
