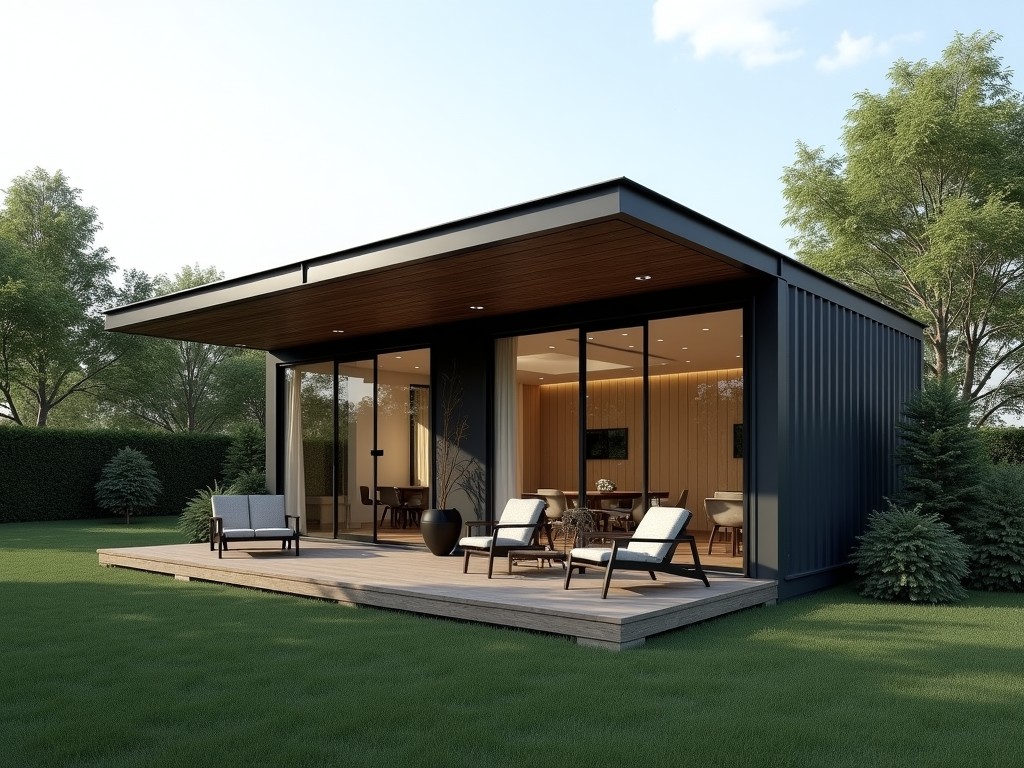

Wholesale Light Steel Structure Villa

Light steel structure villas combine cold‑formed steel framing with insulated panel systems to deliver buildings that are fast to erect, lightweight, and suitable for repeated wholesale production. The system relies on standardized profiles and bolted connections, allowing repeatable fabrication while accommodating project‑specific layout changes. This approach reduces on‑site labor, shortens construction schedules, and provides predictable structural performance.

Structural System Overview

The primary frame uses C‑section studs and tracks fabricated from hot‑dip galvanized steel, typically 0.9 mm to 2.0 mm thick depending on load requirements. Members are connected with self‑drilling screws, blind rivets, or bolted plates, enabling rapid assembly without welding on site. Vertical loads are transferred through stud walls to floor joists, while lateral resistance is provided by shear walls and diagonal bracing.

Material Specifications

Design & Customization

While the base system uses repeatable modules, several parameters can be adjusted to meet specific project needs without redesigning the entire fabrication process.

• Clear span: 4 m to 12 m per bay, adjustable by altering stud depth or adding intermediate columns.
• Number of floors: single‑story to three‑story, with floor joist depth scaled accordingly.
• Roof pitch: flat to 30°, compatible with standing seam metal roof or insulated panels.
• Wall infill: choice of sandwich panels, concrete board, or traditional cladding.
• Opening sizes: doors and windows positioned per architectural layout, reinforced with perimeter frames.

Applications in Wholesale Construction

Wholesale developers benefit from the predictable cost and schedule of light steel villas because the majority of fabrication occurs in a controlled factory environment. The low self‑weight reduces foundation requirements, enabling construction on sites with limited bearing capacity. Additionally, the system’s ductility provides good seismic performance, a key consideration for projects in earthquake‑prone regions.

Quality Control & Manufacturing

Production begins with CNC‑cut profiles to tolerances of ±0.5 mm, followed by automated punching for fastener holes. Each batch undergoes visual inspection for coating continuity, and dimensional checks are performed on a sampling basis before packaging. Welded or bolted connections are torque‑verified where applicable, and a final assembly check confirms alignment of studs, tracks, and panel interfaces.

Packaging & Shipping

Frequently Asked Questions

• Can dimensions be customized? Yes, bay width, floor height, and roof slope are adjustable within the standard profile range; custom lengths are available upon request.
• What information is required before quotation? Preliminary layout, desired floor area, number of stories, local snow/wind/seismic loads, and any architectural finishes.
• What steel grades and coatings are available? Standard Q235B with Z275 galvanizing; optional S350GD and Zn‑Al‑Mg coating for higher corrosion resistance.
• How is quality inspected? Dimensional checks on CNC‑cut parts, coating thickness measurement, fastener torque verification, and final fit‑up inspection before packing.
• What packaging methods protect against transit damage? Steel straps, corner protectors, palletization, stretch‑wrap, and moisture‑barrier bags for fasteners.
• How are export shipments secured? Containers are loaded with weight distribution verified, and lashing per ISO 3874 standards to prevent shifting.
• What is the typical production lead time? 2‑4 weeks after drawing approval, depending on order volume and complexity.
• Are samples available? Sample sections of studs, tracks, and panel joints can be provided; shipping costs are borne by the requester.
